Carrete de Cable de 305m / 4 x 14 AWG / Cable DIRECT BURIAL / Color Negro / Para uso en Intemperie / Uso en Aplicaciones en Sistemas de Detección de Incendio y Sistemas de Evacuación

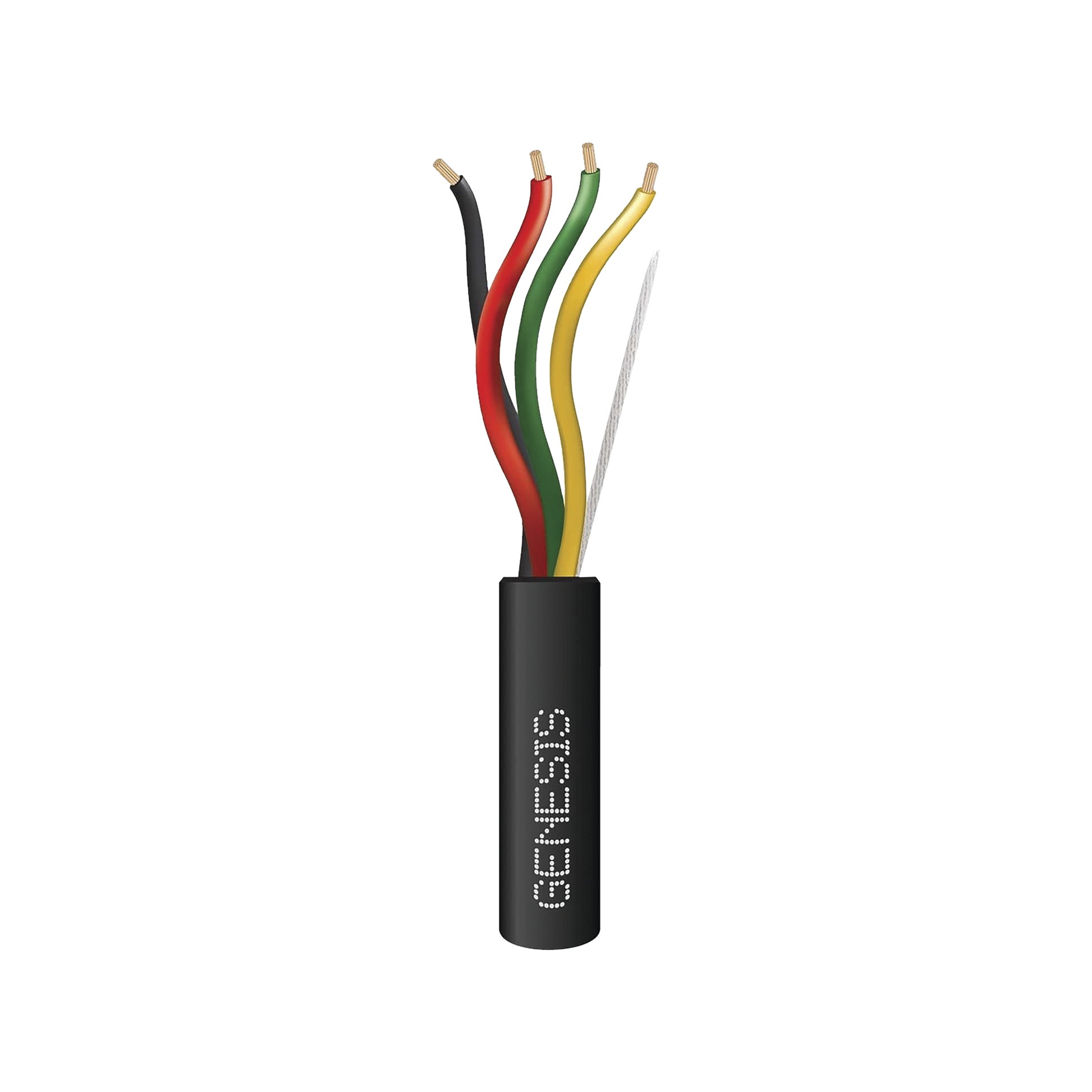

This Genesis® cable features 4 stranded 14 AWG copper conductors and a direct burial rating. Choose this cable for a dependable fire alarm system wiring solution.

SPECIFICATIONS

• Cable rating: outdoor
• Wire gauge (AWG): 14
• Number of strands: 19
• Number of conductors: 4
• Insulation colors: black, red, green, yellow
• Ripcord: yes
• Nominal Outer Diameter: 0.355 in.
• DC Resistance (Max): 2.62 Ohms / 1000 ft. at 20 °C
• Impedance (Nominal): 89 Ohms
• Cable listing: FPL, CL2, Sunlight resistant, direct burial.
• Stranded cable
• Conductor material: bare copper
• Conductor Insulation Material: SRPVC
• Shielding: No
• Jacket Material: PVC
• Rated Voltage (Max): 300 Volts
• Capacitance (Nominal): 17.1 pF / ft.
• Velocity of Propagation: 67%
