ANDREW / COMMSCOPE

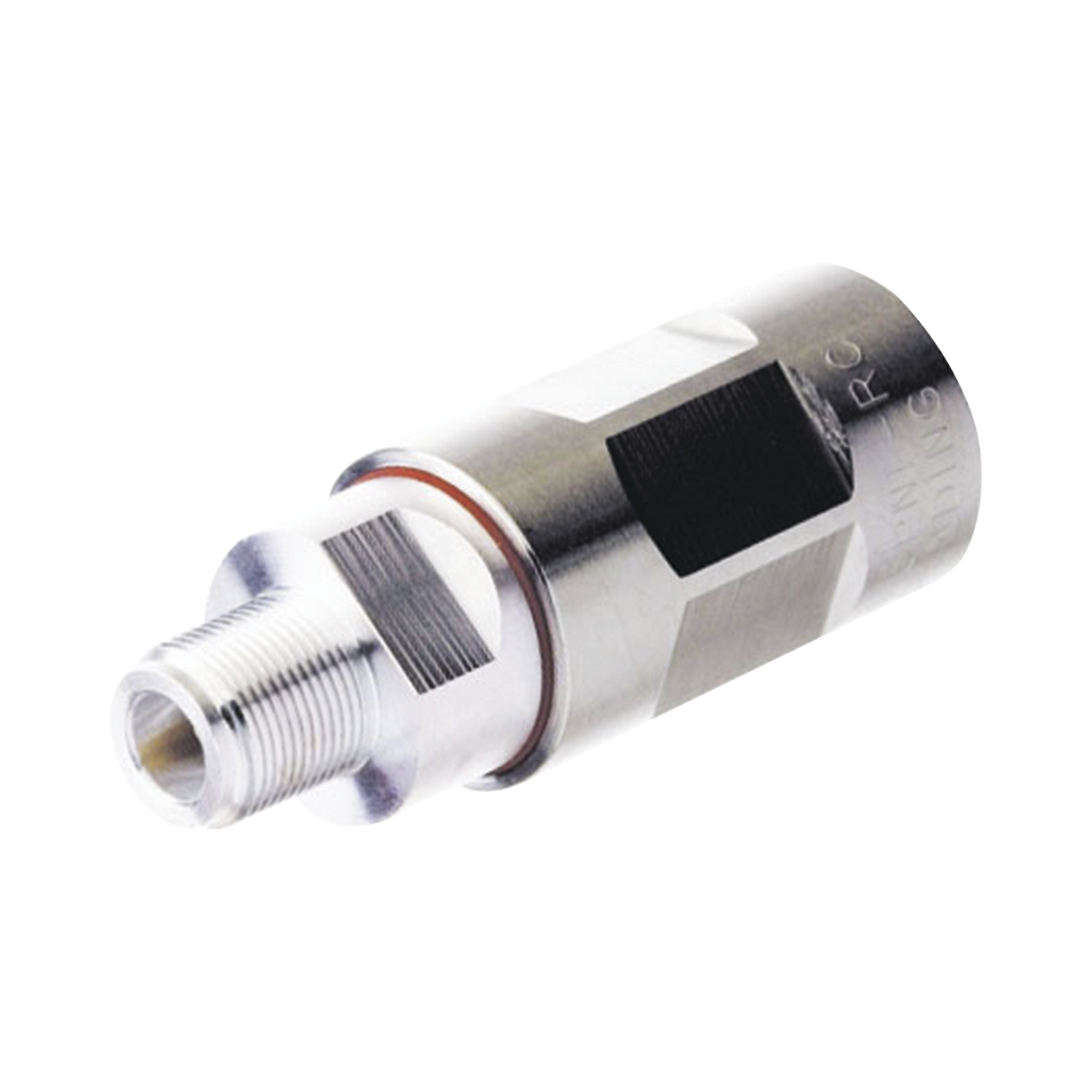

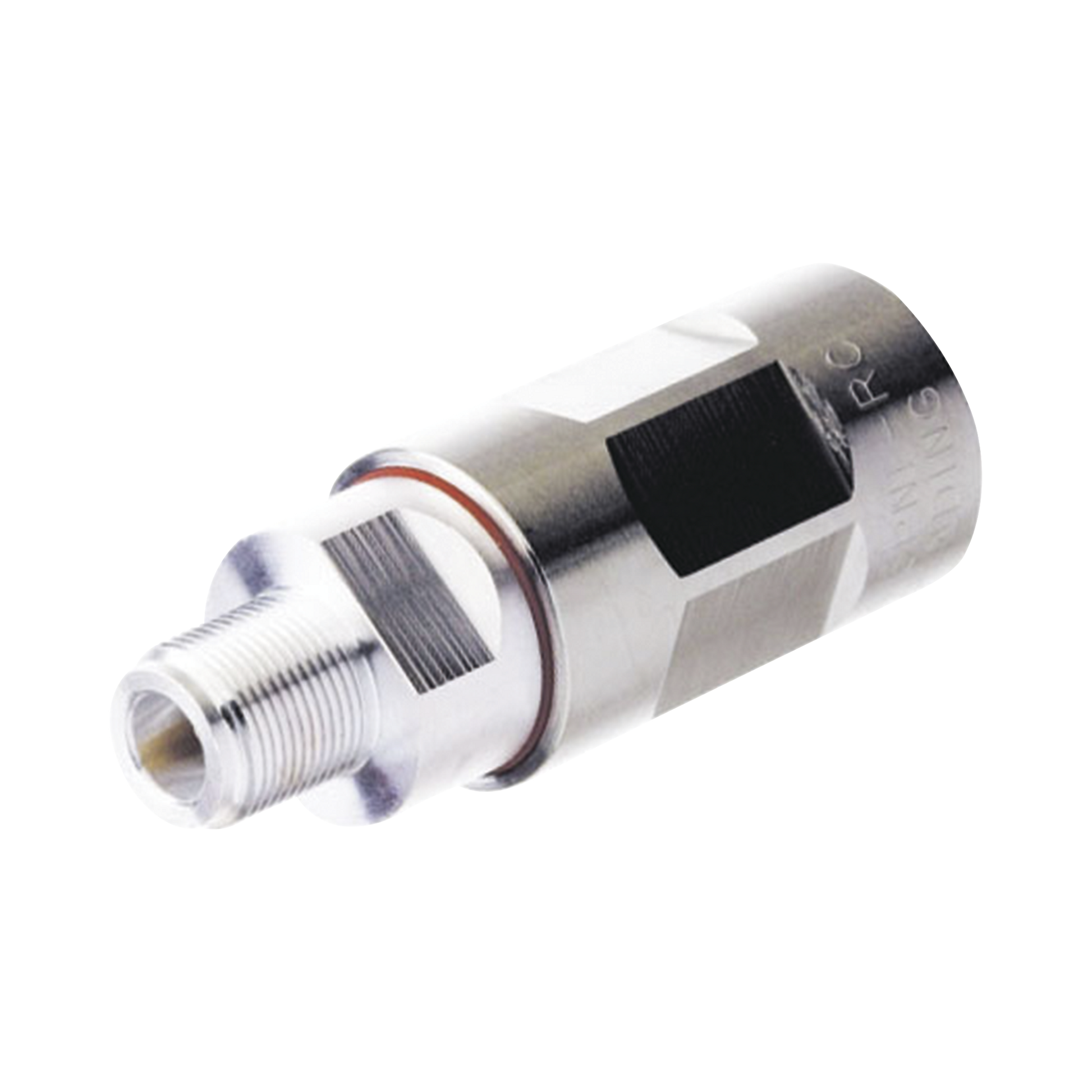

Conector N Hembra (L4.5PNF-RC) para Cable 5/8" Modelo LDF4.5-50
Conector N Hembra (L4.5PNF-RC) para Cable 5/8" Modelo LDF4.5-50
Precio habitual
$ 1,301.11 MXN
Precio habitual
Precio de oferta
$ 1,301.11 MXN
Precio unitario
por
No se pudo cargar la disponibilidad de retiro
| General Specifications | |
| Interface | N Female |
| Body Style | Straight |
| Brand | HELIAX® |
| Mounting Angle | Straight |
|
| |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 6100 MHz |
| Cable Impedance | 50 ohm |
| RF Operating Voltage, maximum (vrms) | 707.00 V |
| dc Test Voltage | 2000 V |
| Outer Contact Resistance, maximum | 0.30 mOhm |
| Inner Contact Resistance, maximum | 2.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 0.6 kW @ 900 MHz |
| Peak Power, maximum | 40.00 kW |
Insertion Loss, typical
| 0.05 dB |
| Shielding Effectiveness | -110 dB |
